Xinyu's Extempore tutorials

These tutorials are part of Xinyu Hou’s research project to create a set of PRIMM-style tutorials for learning to make sound/music in Extempore.

They’re currently a work-in-progress—when they’re done they’ll be hosted on the main Extempore docs site, but for now they’re here on my blog.

Preliminaries

Setting Up Environment

Installing Extempore

Install Extempore by following the steps here.

Installing VSCode

Install VSCode (a text editor) by following the steps here.

Note: if you want to use a different text editor, there are other options as well.

Evaluating Extempore Code

Evaluate the extempore code on VSCode by following the steps below:

Start VSCode
Go to File -> Open, then open your Extempore directory.
In the VSCode built-in terminal window (ctrl+`) move into the extempore directory, and start extempore (type ./extempore and hit return).
Open or create an Extempore file (.xtm file)

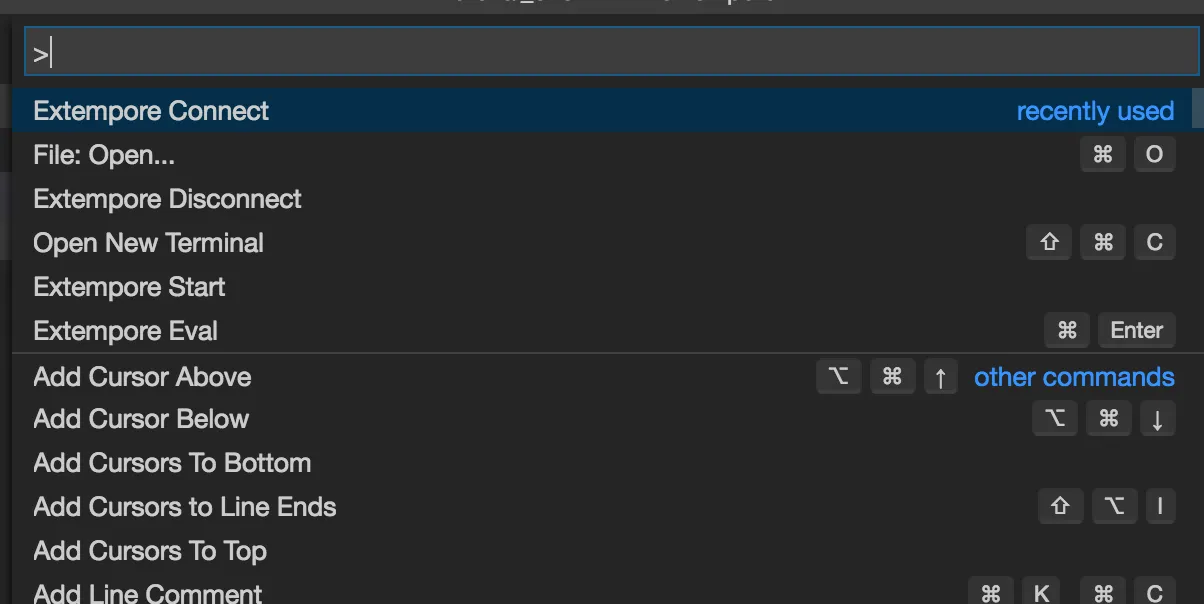

Connect to the Extempore process: you can do this in VSCode through the “command palette”, which can be brought up with ctrl+Shift+P on Windows/Linux or cmd+Shift+P on macOS.

</picture>

Type Extempore Connect in the opening command palette, the default host and port arguments will be localhost and 7099 respectively.

To evaluate Extempore code: move the cursor into the code you want to evaluate and hit cmd+enter on macOS or ctrl+enter on Windows/Linux.

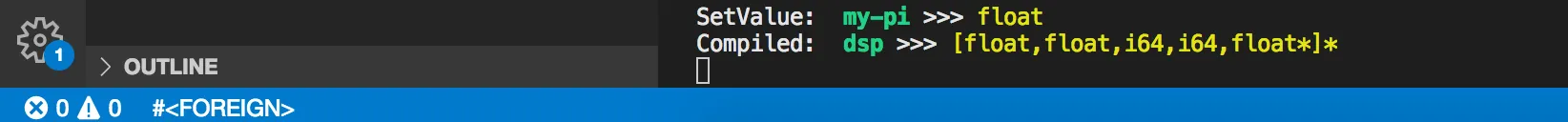

What you might see in the terminal window when you evaluate extempore code:

Note: you can use ctrl+c in the terminal where extempore is running to kill the extempore process whenever you want.

Tutorial One

Predict and Run

Work in pairs or small groups, look at the code below and predict what does this code do:

(bind-val my-pi float 3.1415)

Note: in Extempore, we generally use kebab-case case style my-pi instead of using camelCase myPi or PascalCase MyPior snake_case my_pi.

Run the code above. Does the compiler print anything in the log? What does the printed message mean?

Now, it’s time to produce a sound in Extempore!

Work in pairs or small groups again, look at the code below and predict/guess what might happen when it runs:

(bind-func dsp:DSP
  (lambda (in time chan dat)
    (let ((amplitude 0.1)
          (frequency 440.0)
          (two-pi (* 2.0 my-pi)))
      (* amplitude
         (sin (/ (* frequency
                    two-pi
                    (convert time)) SRf))))))

(dsp:set! dsp)

Does it work as predicted?

Hint: we set up the xtlang callback:
(bind-func dsp:DSP
  (lambda (in time chan dat)
    0.0))
in:SAMPLE sample from input device

time:i64 sample number

chan:i64 audio channel

dat:SAMPLE user data

<return>:SAMPLE sample at given channel and time

sample value range from -1.0 to 1.0

Note: In Extempore, we represent the mathematical operation 2 * PI as (* 2 PI)

Note: SRf refers to the current sampling frequency

Note: The form of a let statement is as follows: (let ((var_name_1 var_value_1) ... (var_n val_n)) (<body>))

Note: convert allows us to make a SAMPLE typed value from time.

Note: We only can set dsp function once, but then redefine it as many times as we want.

What about white noise in Extempore?

(bind-func dsp:DSP
  (lambda (in time chan data)
    (* 0.2 (random))))

Can you explain what happened here?

Investigate

Work in pairs or in small groups, work out the answers to the following questions:

In what order did you compile (execute) the code in this program?
What happened after you evaluated each “chunk” of Extempore code?
Can you guess what would happen if you compile the code in a different order?

Note: you can add comments (starting with ;;) to the program to make some notes for you to understand the code. The comments are generally ignored by compilers and interpreters.

Modify

Can you play a sound with a frequency of 460.0?
Can you make the sound louder by just changing the code? (don’t use your volume buttons!)

Make

Now, let’s move amplitude, frequency and two-pi outside of lambda to make our dsp function controllable outside as below:

(bind-func dsp:DSP
  (let ((amplitude 0.1)
        (frequency 440.0)
        (two-pi (* 2.0 my-pi)))
    (lambda (in time chan dat)
      (* amplitude
         (sin (/ (* frequency
                    two-pi
                    (convert time)) SRf))))))

Can you play a random frequency sound every time when you redefine the dsp function?

Note: You could use (random 440.0 700.0) to randomly generate a value between 440.0 and 700.0

Compare to the (random) in the white noise part above, does the (random) work differently here? Can you explain how (random) can be either for “control” (e.g. see the above sine wave part) or for “signal” (e.g. see the white noise part)?

Tutorial Two

Predict and Run

Work in pairs or small groups, look at the code below and predict what might happen when it runs.

;; load the instruments file
(sys:load "libs/core/instruments.xtm")

;; define an fmsynth using the built-in components
(make-instrument fmsynth fmsynth)

;; add the instrument to the DSP output sink closure
(bind-func dsp:DSP
  (lambda (in time chan dat)
    (fmsynth in time chan dat)))

(dsp:set! dsp)

Note: The dsp function takes as input:

in: the input audio sample, e.g. from the microphone.

time: an i64 representing the time.

chan: another i64 which represents the channel index (0 for L, 1 for R, etc.). Extempore can handle any number of channels.

data: this is a pointer to a SAMPLE type (which is float by default), and can be used to pass arbitrary data into the dsp function.

Think about what is the i64 type in the above Note?

Primitive types in Extempore:

Integers:

i1: (boolean) uses 1 bit.

i8: (char) uses 8 bits (1 byte), which could store 2^8 = 256 unique integer values, -128 ~ 127.

i32: uses 32 bits, which could store 2^32 uniquew integer values, -2^31 ~ (2^31 - 1).

i64: (default) uses 64 bits, which could store 2^63 uniquew integer values, -2^63 ~ (2^63 - 1).

Floats:

float: a single precision (32 bit) floating-point data type.

double: (default), a double precision (64 bit) floating-point data type.

Moreover, for your interests:

Pointer types:

double*: a pointer to a double.

i64*: a pointer to a 64-bit integer.

i64**: a pointer to a pointer to a 64-bit integer.

Now, we could play a note by using the fmsynth instrument that we just defined:

;; play a note on our fmsynth
(play-note (now) fmsynth (random 60 80) 80 *second*)

Note: the parameters for play-note are play-note <start-time> <instrument> <note-frequency> <note-duration>

What would happend if you play the note for the second time (or multiple times)? Why is the note different?

It’s the time to make a loop in Extempore:

;; make a loop
(define my-loop
  (lambda (time)
    (play-note time fmsynth (random 60 80) 80 *second*)
    (callback (+ time *second*) 'my-loop (+ time *second*))))

(my-loop (now))

We make a loop function above, but how does the loop work? let’s see a simpler example:

;; let's see a simpler loop example
(define test-loop
 (lambda ()
   (println "I'm looping...")
   (callback (+ (now) 10000 *second*) 'test-loop ()))
)

(test-loop())

Note: the parameters for callback are callback <time> <func> <args>

Can you predict what will happen when you run the test-loop function? Run the code to check your thoughts.

Note: do not forget to check your terminal panel.

Investigate

Work in pairs or in small groups, work out the answers to the following questions:

What does my-loop do?
What does the callback in the loop do?
What is the difference between Scheme lambda expression and xtlang bind-func expression? More information click here.
What is the difference between using now versus using time? More information click here.

Note: you can add comments (starting with ;;) to the program to make some notes for you to understand the code.

Modify

Work in pairs or in small groups, can you modify the above code and make a loop with random notes lengths and random notes frequencies.

;; hint
;; make a loop with random note length and random note
(define diff-length
  (lambda (time)
    (let ((note-length (random '(0.5 1.0 1.5 2.0)))
          (pitch (random '(60 63 65 68 70 73 75 78 80))))
        (play-note time fmsynth pitch 80 (* *second* note-length))
        (callback (+ time (* note-length *second*)) 'diff-length (+ time (* note-length *second*)))))))

(diff-length (now))

Make

Can you make a chord (or play different notes at the same time) function by using similar ideas to the previous program?

Tutorial Three

Predict and Run

;; loop major scale
(let loop-white-keys((scale '(0 2 4 5 7 9 11 12 14 16 17 19 21 23))
           (time 0))
  (play-note (+ (now) time) synth (+ 60 (car scale)) 80 4000)
  (if (not (null? (cdr scale)))
      (loop-white-keys (cdr scale) (+ time 10000))))

;; another loop for notes
(let loop-black-keys ((scale '(1 3 6 8 10 13 15 18 20 22))
           (time 0))
  (play-note (+ (now) time) synth (+ 60 (car scale)) 80 4000)
  (if (not (null? (cdr scale)))
      (loop-black-keys (cdr scale) (+ time 10000))))

Note:

car return the first element of a list.

cdr return the rest of the elements in a list, that is, it returns the part of the list that follows the first item.

if <test> <consequent> <alternate>

more conditionals syntax.

Note: the syntax for let is: let <variable> <bindings> <body>

Note: in the above examples, we used the named let. Therefore, the <body> could be repeatly executed by invoking the let procedure named by the <variable>.

Can you predict what will happen? Then run the code to check your thoughts.

Before you run the code above, do not forget to load the libraries, define and add an instrument synth to the dsp output sink closure:

;; load the instruments file
(sys:load "libs/core/instruments.xtm")
(sys:load "libs/core/pc_ivl.xtm")

;; define a synth using the provided components
(make-instrument synth fmsynth)

;; add the instrument to the DSP output sink closure
(bind-func dsp:DSP
  (lambda (in time chan dat)
    (synth in time chan dat)))

(dsp:set! dsp)

Now, Let’s play a chord on a list of frequencies! Can you predict what will happen here:

;; play a chord
(map (lambda (p)
       (play-note (now) synth p 80 44100))
     (list 72 76 79))

Note: again, the parameters for lambda is: lambda <formals> <body>

Note: here we have two methods to express a list: For example, (list 72 76 79) and '(72 76 79).

Can you guess what does map do?

Here is another method to play the same chord that we ran above:

;; another method for play the same chord
(define play-a-chord
  (lambda (time chord)
    (for-each (lambda (p)
                (play-note time synth p 80 44100))
              chord)
    ))

(play-a-chord (now) '(72 76 79))

Can you guess what will happen after running play-a-chord?

How about more chords?

;; markov chord progression
(define my-progression
  (lambda (time chords)
    (play-a-chord time (car chords))
    (define loop-chords '())
    (if (not (null? (cdr chords)))
        (set! loop-chords (cdr chords))
        (set! loop-chords '((72 76 79)(69 72 76)(65 69 72)(67 71 74))))
    (callback (+ time 40000) 'my-progression (+ time 44100) loop-chords))
  )

(my-progression (now) '((72 76 79)(69 72 76)(65 69 72)(67 71 74)))

Note: the syntax for set! is set! <variable> <expression>, which could assign the <expression> to the <variable>

Run the code. Dose it work as you predicted?

Investigate

Work in pairs or in small groups, work out the answers to the following questions:

Currently, you have already seen let, define and set!. What are the differences between let, define and set!? E.g:
- set! doesn’t define the variable, rather it is used to assign the variable a new value.
- The scope of variables defined by let are bound to the latter. define doesn’t surround the body with parentheses.
Here is another method to play the same chord that we predicted and ran before:

;; another method for play the same chord
(define play-a-chord
  (lambda (time chord)
    (for-each (lambda (p)
                (play-note time synth p 80 44100))
              chord)
    ))

(play-a-chord (now) '(72 76 79))

Compare to the map one, can you find what is the difference between map and for-each?

Evaluation order?
Return?

We could use do to make a loop on playing the chord with the above play-a-chord method:

;; use do to loop the chord
(do ((i 0 (+ i 1)))
    ((> i 3000) ())
    (play-a-chord (now) '(72 76 79)))

Compare to other loop or other iteration methods, can you find how does the do work here?

Hint: the syntax of do is:
(do ((<variable1> <init1> <step1>) ...)
    (<test> <expression> ...)
    <command> ...)
if the <test> result is false, then the sequence of <command> would be evaluated.

if the <test> result is true, the sequence of <expression> would be evaluated from left to right, and the last <expression>’s values would be returned at the end.

the boolean data type for understanding true and false.

Modify

Now, can you please modify the my-progression function so that it could loop each chord for four times before going to the next chord?

;; hint
;; modified my-progression
(define my-progression-modify
  (lambda (time chords n)

    (let loop ((loop-times 0))
      (if (= loop-times n)
          (display "stopped")
          (begin (play-a-chord (+ time (* loop-times 44100)) (car chords))
            (loop (+ loop-times 1)))))
    ; (loop-n-times n (play-a-chord time (car chords)))

    (define loop-chords-modify '())
    (if (not (null? (cdr chords)))
        (set! loop-chords-modify (cdr chords))
        (set! loop-chords-modify '((72 76 79)(69 72 76)(65 69 72)(67 71 74))))

    (callback (+ time (* n 40000)) 'my-progression-modify (+ time (* n 44100)) loop-chords-modify n))
  )

(my-progression-modify (now) '((72 76 79)(69 72 76)(65 69 72)(67 71 74)) 4)

Note: here we used the begin to do the sequencing: begin <expression 1> <expression 2> ...<expression n>

the sequence of <expression i> will be evaluated sequentially from left to right.

begin will return the value of the last <expression n>.

Make

Based on the previous code, can you make some creative melody by yourself?
Can you play your melody and the chords at the same time?

Tutorial Four

Predict and Run

In this tutorial, we will learn how to do samplers in Extempore. Extempore provides a built-in sampler in libs/external/instruments_ext.xtm, so let’s load the libraries first:

;; load the libs
(sys:load "libs/external/instruments_ext.xtm")
(sys:load "libs/core/instruments.xtm")

We are going to create a drum sampler, can you guess what is happening here:

;; TODO
;; Set/Change the path of the subdirectory “OH” in your code.
;; In my computer it’s like:
(define drum-path "/Users/apple/Downloads/COMP3740/salamanderDrumkit/OH/")

;; Load some wave files into drums sampler:
(set-sampler-index drums (string-append drum-path "kick_OH_F_9.wav") *gm-kick* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "snareStick_OH_F_9.wav") *gm-side-stick* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "snare_OH_FF_9.wav") *gm-snare* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "hihatClosed_OH_F_20.wav") *gm-closed-hi-hat* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "hihatFoot_OH_MP_12.wav") *gm-pedal-hi-hat* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "hihatOpen_OH_FF_6.wav") *gm-open-hi-hat* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "loTom_OH_FF_8.wav") *gm-low-floor-tom* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "hiTom_OH_FF_9.wav") *gm-hi-floor-tom* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "crash1_OH_FF_6.wav") *gm-crash* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "ride1_OH_FF_4.wav") *gm-ride* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "china1_OH_FF_8.wav") *gm-chinese* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "cowbell_FF_9.wav") *gm-cowbell* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "bellchime_F_3.wav") *gm-open-triangle* 0 0 0 1)
(set-sampler-index drums (string-append drum-path "ride1Bell_OH_F_6.wav") *gm-ride-bell* 0 0 0 1)

Let’s look at the first row of set-sampler-index. Can you guess why do we need *gm-kick*? What does string-append drum-path "kick_OH_F_9.wav" do?

Note: How to load samples (you can also find more information from github).

Download the instrument samples from Salamader Drumkit.

Unzip the samples and put them wherever you like on your computer.

Set/Change the path of the subdirectory “OH” in your code. In my computer it’s like: define drum-path "/Users/apple/Downloads/COMP3740/salamanderDrumkit/OH/".

Before you run the code, do not forget to define and add an instrument drums to the dsp output sink closure, and set the dsp as well:

;; define a sampler (called drums) using the default sampler note kernel and effects
(make-instrument drums sampler)
;; define a synth using the provided components
(make-instrument synth fmsynth)

;; add the sampler to the dsp output callback
(bind-func dsp:DSP
  (lambda (in time chan dat)
    (+ (synth in time chan dat)
       (drums in time chan dat))))

(dsp:set! dsp)

Sounds could be played by calling the below instructions, the similar things as we did before:

;; evaluate
(play-note (now) drums *gm-open-triangle* 80 44100)
(play-note (now) drums *gm-snare* 80 44100)
(play-note (now) drums *gm-closed-hi-hat* 80 44100)

Can you predict what will happen after you run above three lines respectively? Then run the code to check your thoughts.

Now, a cool thing we will do is to define a metronome to evenly distribute our beats with respect to tempo changes.

Can you predict what is happening here?

;; create a metronome starting at 120 bpm
(define *metro1* (make-metro 120))

;; beat loop along the metronome
(define drum-loop
  (lambda (time duration drum)
    (println time duration)
    (play-note (*metro1* time) drums drum 80 (*metro1* 'dur duration))
    (callback (*metro1* (+ time (* .5 duration))) 'drum-loop (+ time duration)
              duration drum)))

(drum-loop (*metro1* 'get-beat) 1 *gm-hi-floor-tom*)

Let’s define another metronome metronome2:

;; create another metronome starting at 120 bpm
(define *metro2* (make-metro 120))

Can you guess what will happen after you evaluate this drum-loop-tempo-shift? What does println will do?

;; set tempo shift
(define drum-loop-tempo-shift
  (lambda (time duration drum)
    (*metro2* 'set-tempo (+ 20 (* 6. (cos (modulo time 9)))))
    (println (+ 20 (* 6. (cos (modulo time 9)))))
    (play-note (*metro2* time) drums drum 80 (*metro2* 'dur duration))
    (callback (*metro2* (+ time (* .5 duration))) 'drum-loop-tempo-shift (+ time duration)
              (random (list 0.5)) drum)))

(drum-loop-tempo-shift (*metro2* 'get-beat) 0.5 *gm-cowbell*)

Note: println calls the polymorphic function print for each supplied argument, but println automatically provides both spaces and a carriage return.

Run the code. Did it work as you predicted?

Investigate

Work in pairs or in small groups, work out the answers to the following questions:

What does the function make-metro do?
What does *metro* 'get-beat do?
What does *metro* 'dur do?
What does *metro* set-tempo do?

Modify

Work in pairs or in small groups, work out the answers to the following questions:

Can you load the piano samples as well? (Salamander piano).
Can you pay multiple drums with different tempo at the same time?

;;hint
(drum-loop (*metro1* 'get-beat) 1 *gm-hi-floor-tom*)
(drum-loop (*metro1* 'get-beat) 0.3 *gm-open-triangle* )

Make

Combine the knowledge that you learned before. Now you can use drums, synth, piano and metronome to create your own music.

Going further

As well as the Extempore documentation website, the best place to start messing around is with more examples: e.g. the examples/core/fmsynth.xtm file in your Extempore folder.

Xinyu's Extempore tutorials

table of contents

Preliminaries

Setting Up Environment

Installing Extempore

Installing VSCode

Evaluating Extempore Code

Tutorial One

Predict and Run

Investigate

Modify

Make

Tutorial Two

Predict and Run

Investigate

Modify

Make

Tutorial Three

Predict and Run

Investigate

Modify

Make

Tutorial Four

Predict and Run

Investigate

Modify

Make

Going further
